POSTER: computer news || GIGABYTE GA-Q77M-D2H |
DATE:2012-05-24 |
|
|

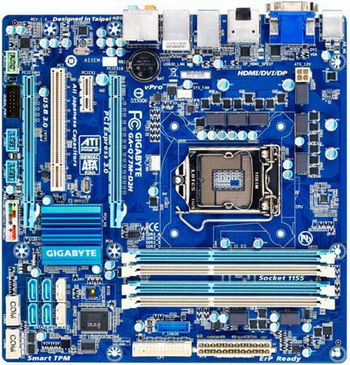

Gigabyte company prepared a motherboard version based on chipset Q77 for the corporate customer . The product is called GA-Q77M-D2H and, like the previously discussed ASRock product, it support a set of technologies supporting Intel vPro and Small Business Advantage. GA-Q77M-D2H is made in accordance with the original concept of Ultra Durable 4 Classic and has a large number of characteristic features of Gigabyte solutions. The motherboard corresponds to the standard size micro-ATX and in addition to LGA 1155 socket and four slots for memory, two slots PCI Express x16 (second and third generations), one PCI Express x1 slot and PCI. Q77 chipset allow you to connect to the motherboard up to six devices with SATA, two can transfer data at speeds up to 6 Gb / s, and will be limited to four 3Gb / s.  Additional connectors give a possibility to connect two ports USB 3.0, four-port USB 2.0, two COM-port and port LPT. The product was originally equipped with TPM, and a separate connector for this module is missing.  The I / O panel hosts two PS / 2 keyboard and mouse, video outputs DisplayPort, HDMI, DVI and D-Sub, four-port USB 2.0, two ports USB 3.0, LAN port and audio jacks. Related Products : | ||
|
|
||
|
